feather cotton ball fiber pillow stuffing filling machine /Foam Particles Filler Machine for Pillow
wechat /whatsapp +86 15093228930
Introduction
| 1 | Fiber opening and pillow filling machine Suitable for filling products of toy factory, sofa factory, pillow etc.. |
| 2 | Filling materials include: PP cotton, down, cloth broken cotton, wool, fiber cotton, foam particles, crushed sponge and poultry hair and other soft items, and can be evenly mixed with the above items as you require, to play the role of cotton mixer; |
| 3 | Fiber opening and pillow filling stuffing machine Can bring its own electronic scale, side fill side weighing, very convenient to control the fill amount. |
| 1 | moderate cotton horn height(from the ground 650mm), easier and more convenient operation; |
| 2 | Mobile electronic micropedal switches are more flexible and more effortless than traditional fixed pedals, greatly reducing the fatigue of operators and maximizing their working efficiency. |
| 3 | thickened storage tanks, equipped with multiple models can adjust the jet nozzle, the impact size is arbitrarily adjusted, ensure that the machine has enough working pressure for the filling of various types of objects, compared with the same product more gas saving up to 25 %. |
| 4 | detachable multi-model cotton pipe(direct 50-10mm), to meet the needs of toys of different sizes. |
| 1 | Fiber opening and pillow filling machine to rotate and pull the cotton teeth through the middle axis, evenly send the cotton to the cotton Hopper, and use the pressure to blow the cotton into the filled objects. |
| 2 | The cotton of the filled product is uniform and more tactile. The working efficiency is more than 15-20 times that of hand-made cotton. |
Fiber opening machine
|
Model |
JCSM-1(small) |
JCSM-2(middle) |
JCSM-3(big) |
|
Capacity |
60-90 Kg/h |
120-150 Kg/h |
250-300 Kg/h |
|
Power |
3.2 Kw |
4.75 Kw |
8.25 Kw |
|
Dimension |
1800*680*880 mm |
2200*880*920 mm |
2200*1300*1080mm |
|
Weight |
250 Kg |
350 Kg |
550 Kg |
fiber filling machine after opening
|
Model |
JCM-1 |
JCM-2 |
|
dimension |
1000*800*800mm |
1000*800*1000mm |
|
voltage |
380V 50Hz |
380V 50Hz |
|
power |
2.2kw |
4kw |
|
Capacity |
100-200kg/H |
150-200kg/H |
|
Weight |
70kg |
80kg |
fiber cotton opening machine

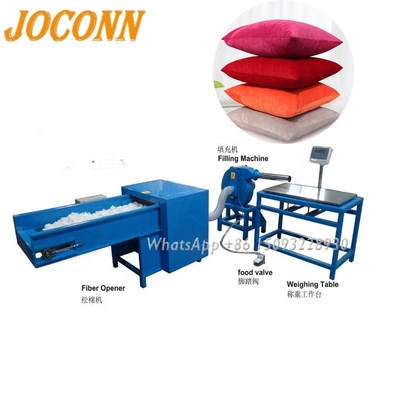

cotton fiber opening and filling combined
operation pannel
filling pipes
can also equip with weighting table
fiber cotton storage automatic feeding cabin saving labor
equipped with 2 units filling machines and 1 cotton feeding storage cabin
If you are interested or have any questions , please feel free to contact me by namecard below , or scan the QR code for quick talk on wechat .we are on service 24hrs .
